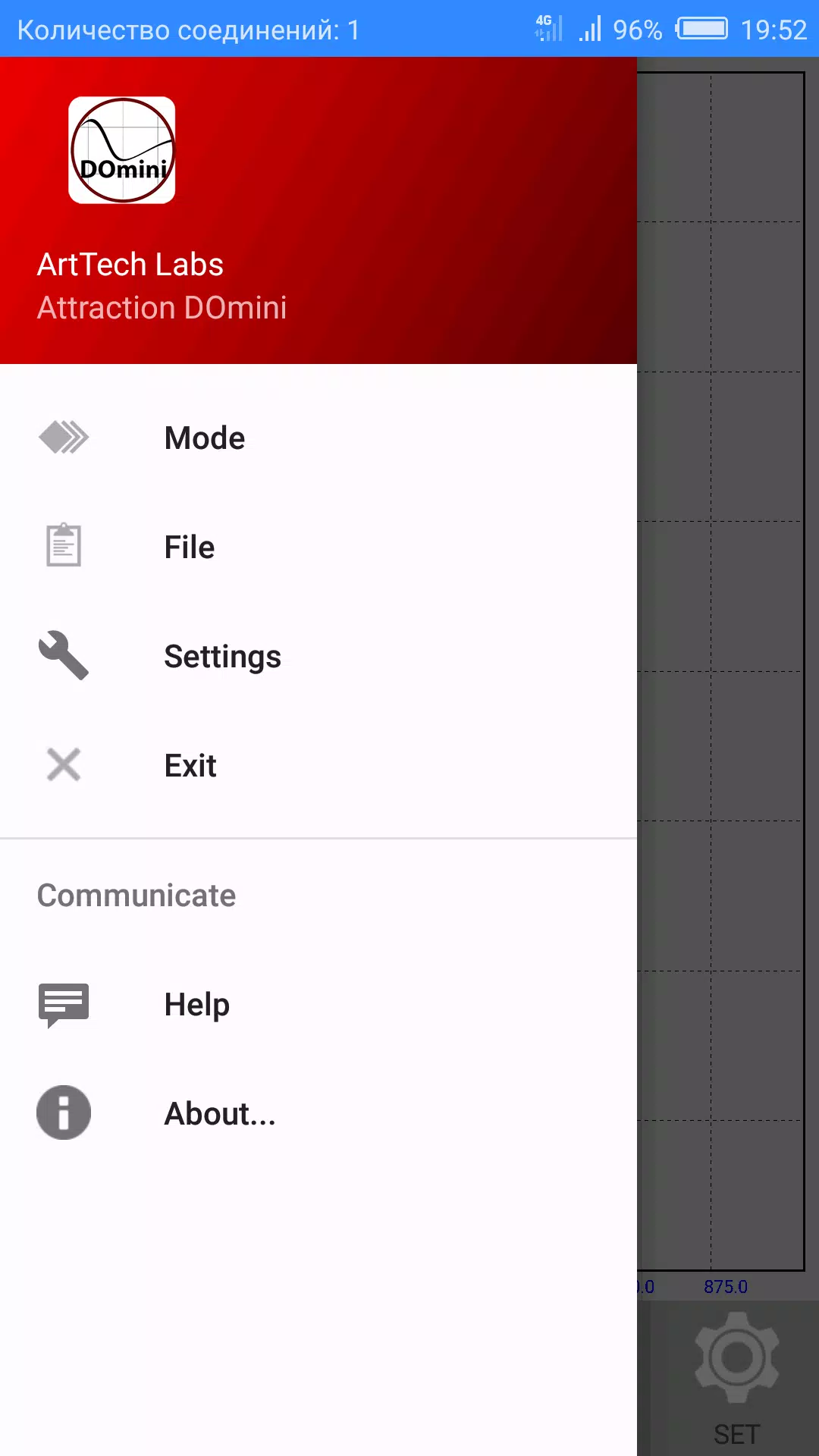

DOmini Digital Oscilloscope & Signal Management Software – A Compact Professional Solution.
DOmini is a versatile digital oscilloscope paired with powerful signal management software, designed for streamlined analysis and control.
This oscilloscope is the ideal tool for students, electronics hobbyists (including Arduino projects), experimental research, and professional electronic engineers.
Key Features:
- 6 Measuring Channels (4 analog + 2 digital).
- 4 Measurement Modes: Single, Normal (Standby), Auto, and Recorder.
- Event trigger for capturing data from the moment of occurrence.
- Real-time Fourier analysis.
- Waveform memory capacity of 13,200 measurements (expandable to 26,400 with a logic analyzer).
- Analog channel sampling rate: 5,000 to 1,000,000 samples per second.
- Digital channel sampling rate: 5,000 to 12,000,000 samples per second.
- Onboard +3.3V and +5V power supply outputs.
- Probe calibration and custom unit configuration.
- Compatible with standard x1 and x10 oscilloscope probes.
- Measurement voltage range: ±5V, 0-10V with x1 probe (±15V, 0-30V achievable).
- 10-bit ADC resolution.
- 4 Digital I/O ports with PWM capability.
- Supported digital interfaces: SPI, I2C, UART, and 1-WIRE.
Typical Applications:

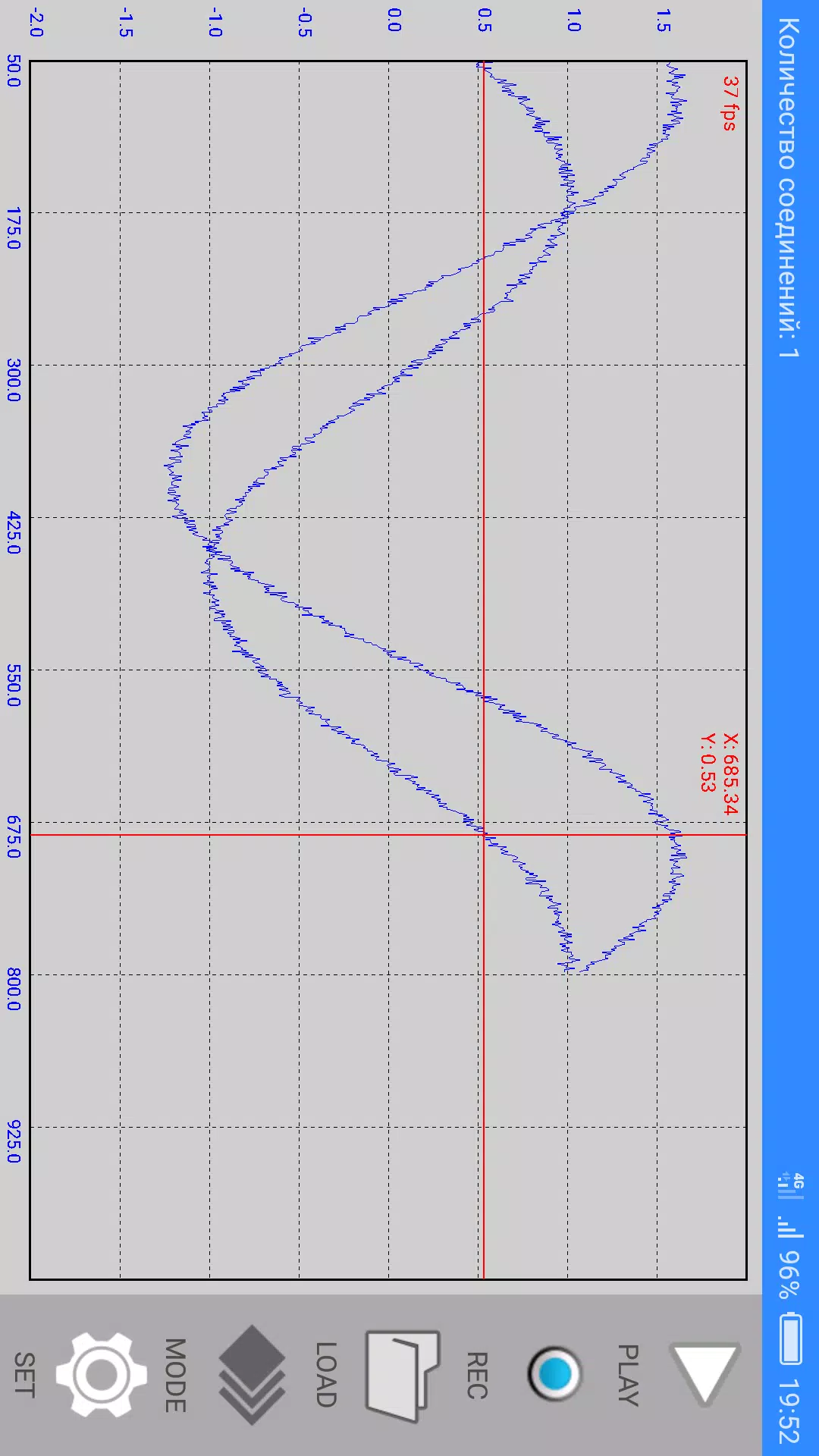

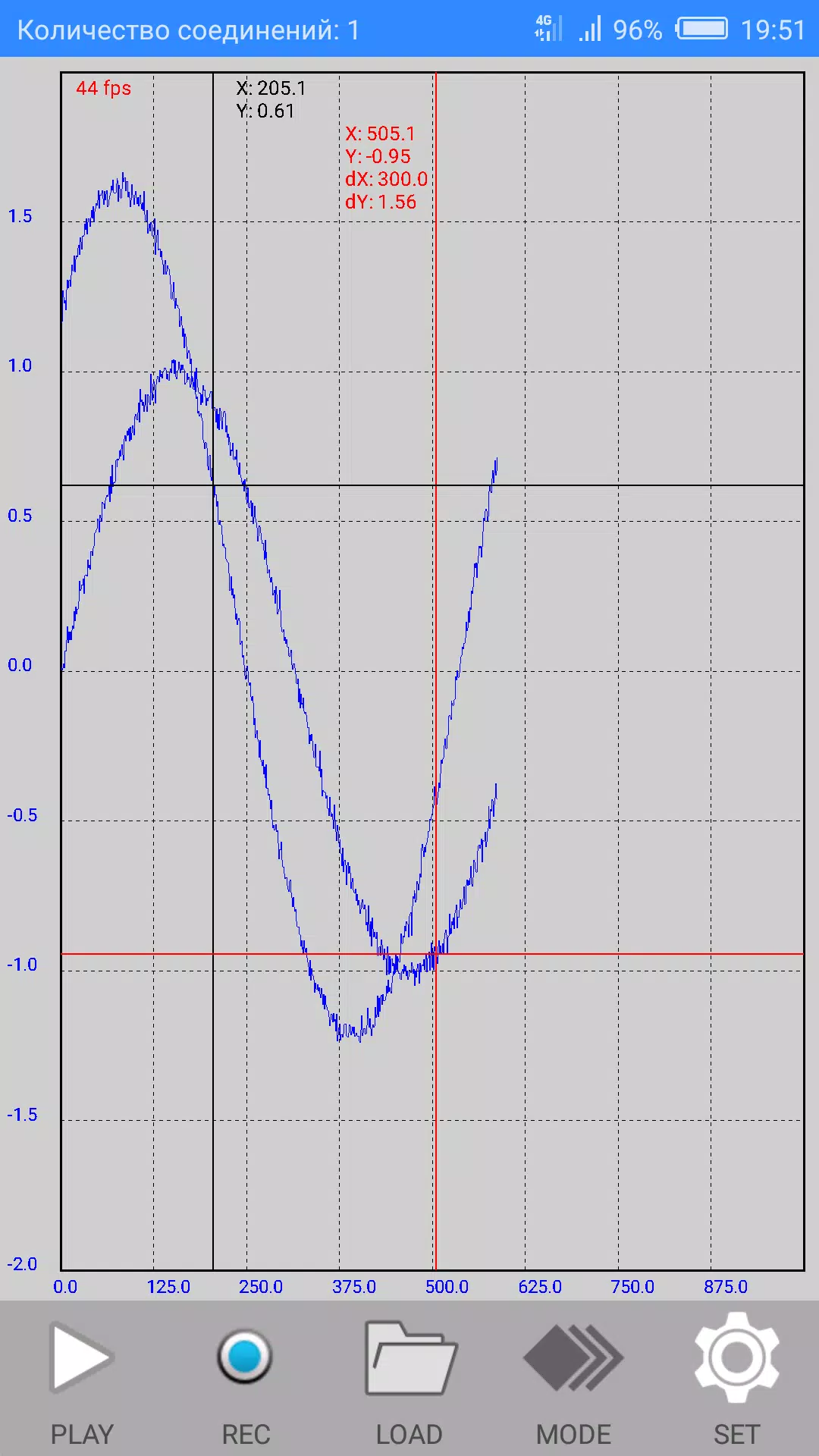

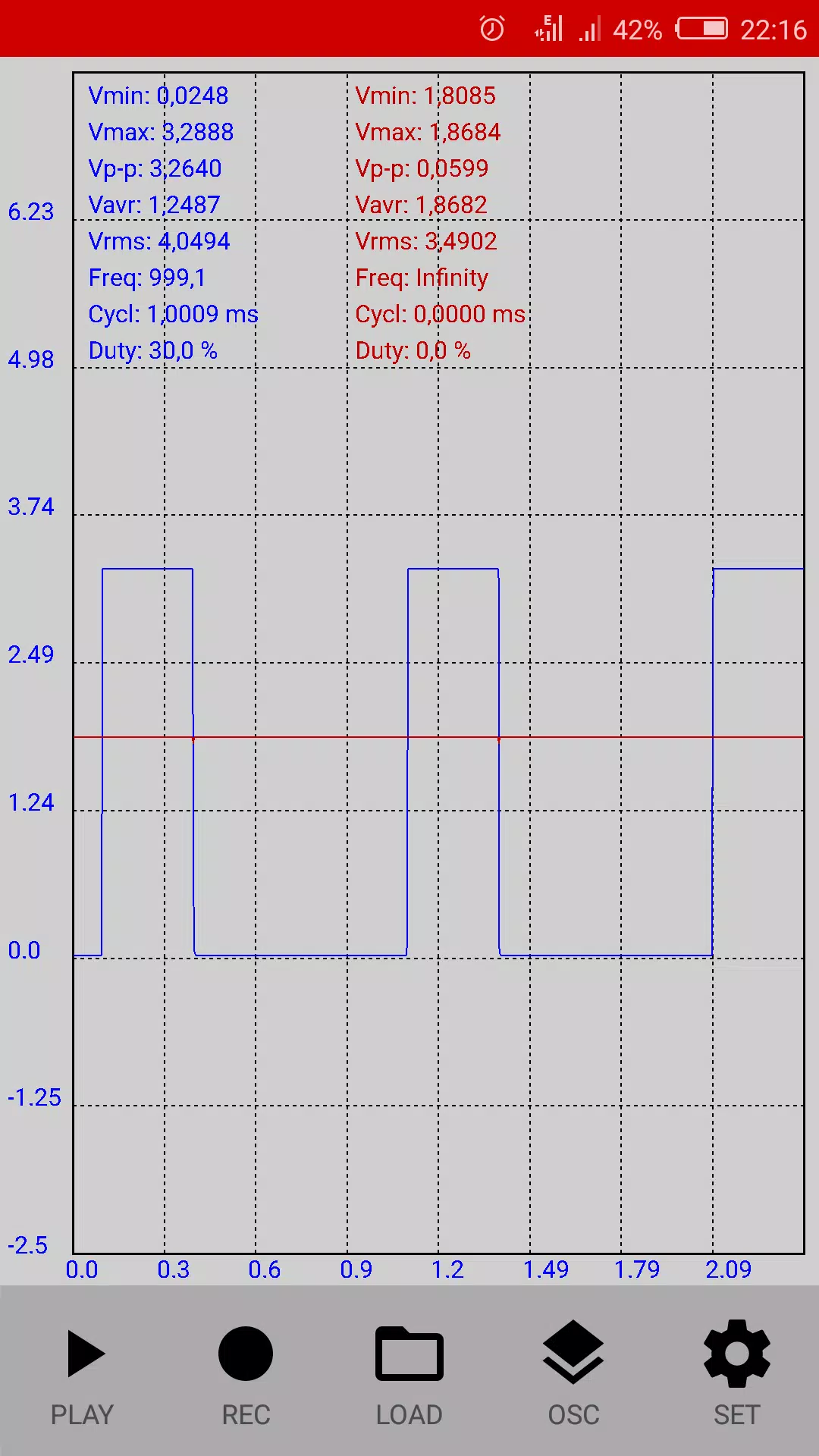

- Real-time analysis of analog and digital signals.
- Signal frequency analysis using Fast Fourier Transform (FFT).
- Controlling external devices via its 4 I/O ports.
- Generating PWM signals from 3Hz to 10MHz.
- Testing integrated circuits with common digital interfaces (SPI, I2C, UART, 1-WIRE).
- Serving as a +3.3V or +5V power source (up to 30mA).
- Functioning as a data acquisition system for various sensors (temperature, humidity, light, etc.).
- Detecting high-impedance (Z) states on input/output ports.
